Apply Stage

terraform-apply

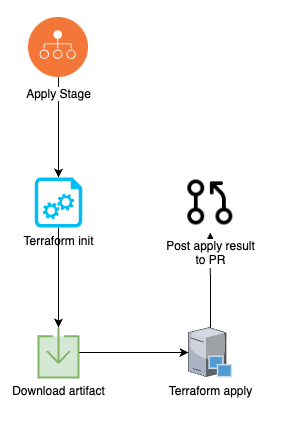

The final stage is the apply stage. The steps within the apply stage aim to initialise the Terraform directory, download the artifact saved in the plan stage, apply the changes in the artifact, and then push the Terraform apply results to the open PR.

Input variables​

name: 'Terraform setup and apply'
description: 'Sets up Terraform and applies the changes'
inputs:
  terraform_directory:
    description: 'Directory that holds Terraform code'
    required: true
  terraform_version:
    description: 'Terraform version'
    required: true
    default: 1.9.2
  github_token:
    description: 'GitHub token for auth'
    required: true
  pr_id:
    description: 'Pull request ID'
    required: true
  aws_role_to_assume:
    description: 'AWS Role to assume'
    required: true
    default: <aws-role-arn>
  aws_role_session_name:
    description: 'AWS Role session name'
    required: true
    default: <aws-role-session-name>
  aws_region:
    description: 'AWS Region'
    required: true
    default: '<aws-region>'

These are the input variables we use for the apply stage. Fill in the previously created AWS Role ARN, AWS Role Session Name and AWS Region.

Composite​

runs:
  using: "composite"
  steps:
    - name: Setup Terraform
      uses: hashicorp/setup-terraform@v3
      with:
        terraform_version: ${{ inputs.terraform_version }}
        terraform_wrapper: false

The next code block defines a composite. The use of a composite is to reuse these defined steps in different pipelines. The composite is also using the terraform_version input variable defined earlier.

Configure AWS Credentials​

    - name: Configure AWS Credentials
      uses: aws-actions/configure-aws-credentials@v4
      with:
        role-to-assume: ${{ inputs.aws_role_to_assume }}
        role-session-name: ${{ inputs.aws_role_session_name }}
        aws-region: ${{ inputs.aws_region }}

With this code block, we are authenticating the GitHub Actions runner with our AWS account using the previously created AWS Role which are defined in the input variables.

Initialise Terraform​

    - name: Terraform Init
      id: init
      working-directory: ${{ inputs.terraform_directory }}
      shell: bash
      run: |
        terraform init

The next step is running an intialisation on the Terraform directory to install the providers.

Download Artifact​

    - name: Download Artifact
      id: download-artifact
      uses: actions/download-artifact@v4
      with:
        name: ${{ inputs.pr_id }}-tf-plan
        path: ${{ inputs.terraform_directory }}

With the tfplan created in the plan stage, we run a step in which the tfplan artifact is downloaded to be used in the next step to be applied.

Applying Terraform​

    - name: Terraform Apply
      id: apply
      working-directory: ${{ inputs.terraform_directory }}
      shell: bash
      run: |
        echo 'apply<<EOF' >> $GITHUB_OUTPUT
        terraform apply -input=false -no-color tfplan >> $GITHUB_OUTPUT
        echo 'EOF' >> $GITHUB_OUTPUT

Our main step in this pipeline is applying the code changes. This step uses the previously downloaded artifact tfplan and applies the changes to our current infrastructure.

Comment Apply Results to PR​

    - name: Comment Apply
      id: comment-apply
      uses: peter-evans/create-or-update-comment@v4
      with:
        token: ${{ inputs.github_token }}
        issue-number: ${{ inputs.pr_id }}
        body: |
          Terraform Apply:
          ${{ steps.apply.outputs.apply }}

NOTE: The body of the message can be found in the Github repo. Please check it there to get this step properly configured.

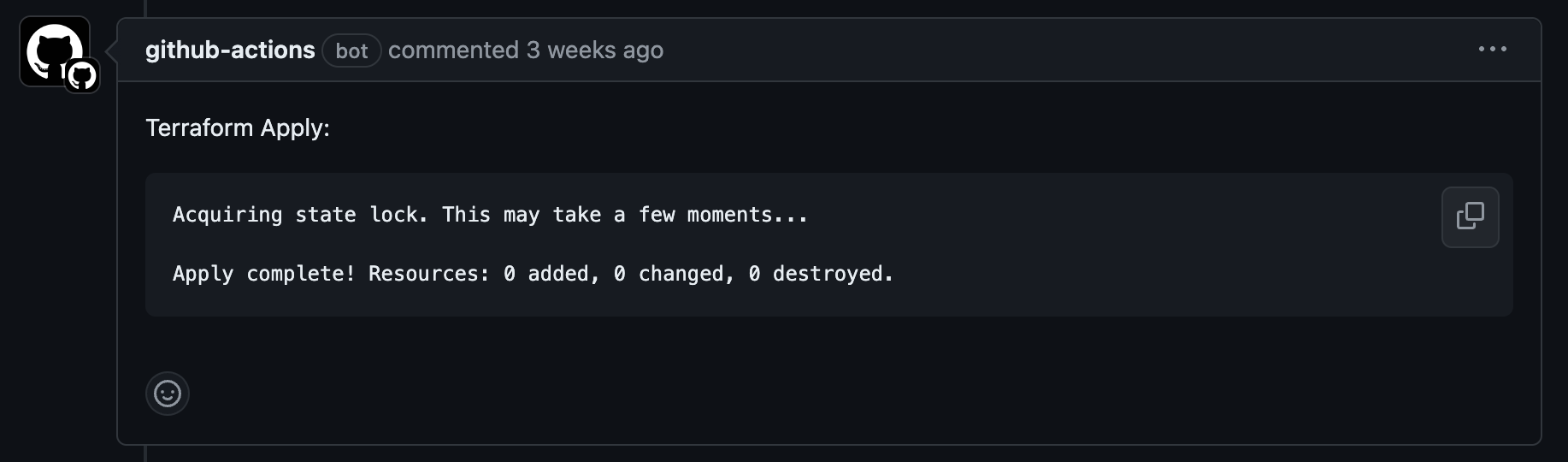

Finally, we comment out the apply result to the current PR for the reviewer to check (along with the previous test and plan results comment) for a holistic view on the code changes. An example would look like this:

terraform-apply-results
