Test Stage

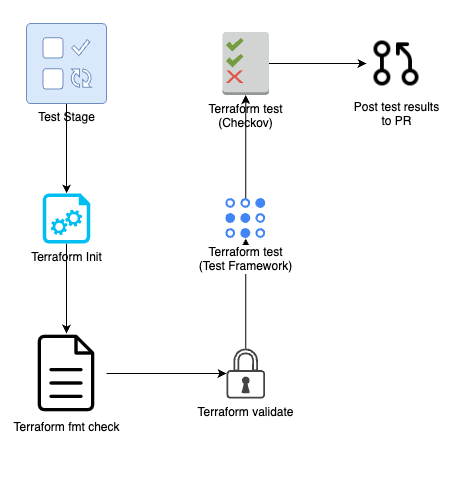

We start the pipeline with a rigourous testing stage consisting of multiple steps. These steps ensure that the Terraform code pushed to the feature branch is formatted correctly, validated, and tested using the Terraform Test Framework and Checkov.

Input variables

name: 'Terraform setup and test'
description: 'Sets up Terraform and tests the code'
inputs:
  terraform_directory:
    description: 'Directory that holds Terraform code'
    required: true
  root_directory:
    description: 'Root directory for fmt check'
    required: true
  terraform_version:
    description: 'Terraform version'
    required: true
    default: 1.9.2
  github_token:
    description: 'GitHub token for auth'
    required: true
  pr_id:
    description: 'Pull request ID'
    required: true
  aws_role_to_assume:
    description: 'AWS Role to assume'
    required: true
    default: <aws-role-arn>
  aws_role_session_name:
    description: 'AWS Role session name'
    required: true
    default: <aws-role-session-name>
  aws_region:
    description: 'AWS Region'
    required: true
    default: '<aws-region>'

These are the input variables we use for the test stage. Fill in the previously created AWS Role ARN, AWS Role Session Name and AWS Region.

Composite

runs:
  using: "composite"
  steps:
    - name: Setup Terraform
      uses: hashicorp/setup-terraform@v3
      with:
        terraform_version: ${{ inputs.terraform_version }}
        terraform_wrapper: false

The next code block defines a composite. The use of a composite is to reuse these defined steps in different pipelines. The composite is also using the terraform_version input variable defined earlier.

Configure AWS Credentials

    - name: Configure AWS Credentials
      uses: aws-actions/configure-aws-credentials@v4
      with:
        role-to-assume: ${{ inputs.aws_role_to_assume }}
        role-session-name: ${{ inputs.aws_role_session_name }}
        aws-region: ${{ inputs.aws_region }}

With this code block, we are authenticating the GitHub Actions runner with our AWS account using the previously created AWS Role which are defined in the input variables.

Testing Terraform

    - name: Terraform Init
      id: init
      working-directory: ${{ inputs.terraform_directory }}
      shell: bash
      run: |
        terraform init

    - name: Terraform fmt check
      id: fmt
      working-directory: ${{ inputs.root_directory }}
      shell: bash
      run: |
        terraform fmt -check -diff -recursive ${{ inputs.root_directory }}

    - name: Terraform Validate
      id: validate
      working-directory: ${{ inputs.terraform_directory }}
      shell: bash
      run: |
        terraform validate

    - name: Terraform Test (Terraform Test Framework)
      id: tftest
      working-directory: ${{ inputs.terraform_directory }}
      shell: bash
      run: |
        terraform test -no-color 2>&1 | tee terraform_test.txt

    - name: Terraform Test (Checkov)
      id: checkov
      uses: bridgecrewio/checkov-action@master
      with:
        directory: ${{ inputs.terraform_directory }}
        framework: terraform
        quiet: true
        output_format: cli
        output_file_path: checkov_results.sarif

After defining the input variables and authenticating with our AWS account, we are now ready to test Terraform. We first initialise the directory to install the Terraform providers. Afterwards, we run a format check to make sure the pushed Terraform code conforms to the formatting guidelines. Next up is the validation step. Terraform aims to validate the configuration files and whether it is syntactically valid and internally consistent.

Terraform testing comes afterwards using the Terraform Test Framework and Checkov. The Terraform Test Framework is used to perform integration or unit testing and Checkov is used to scan Terraform configuration files to find misconfigurations before deploying.

Comment Test Results to PR

    - name: Concatenate Test Results Files
      id: concatenate-files
      shell: bash
      run: |
        echo "###################################" >> test_results.txt
        echo "------ Terraform Test Framework Results -----" >> test_results.txt
        cat ${{ inputs.terraform_directory }}/terraform_test.txt >> test_results.txt
        echo "###################################" >> test_results.txt
        echo "----- Checkov Results -----" >> test_results.txt
        cat checkov_results.sarif/results_cli.txt >> test_results.txt

    - name: Comment Test Results
      id: comment-test-results
      uses: thollander/actions-comment-pull-request@v2
      with:
        filePath: test_results.txt

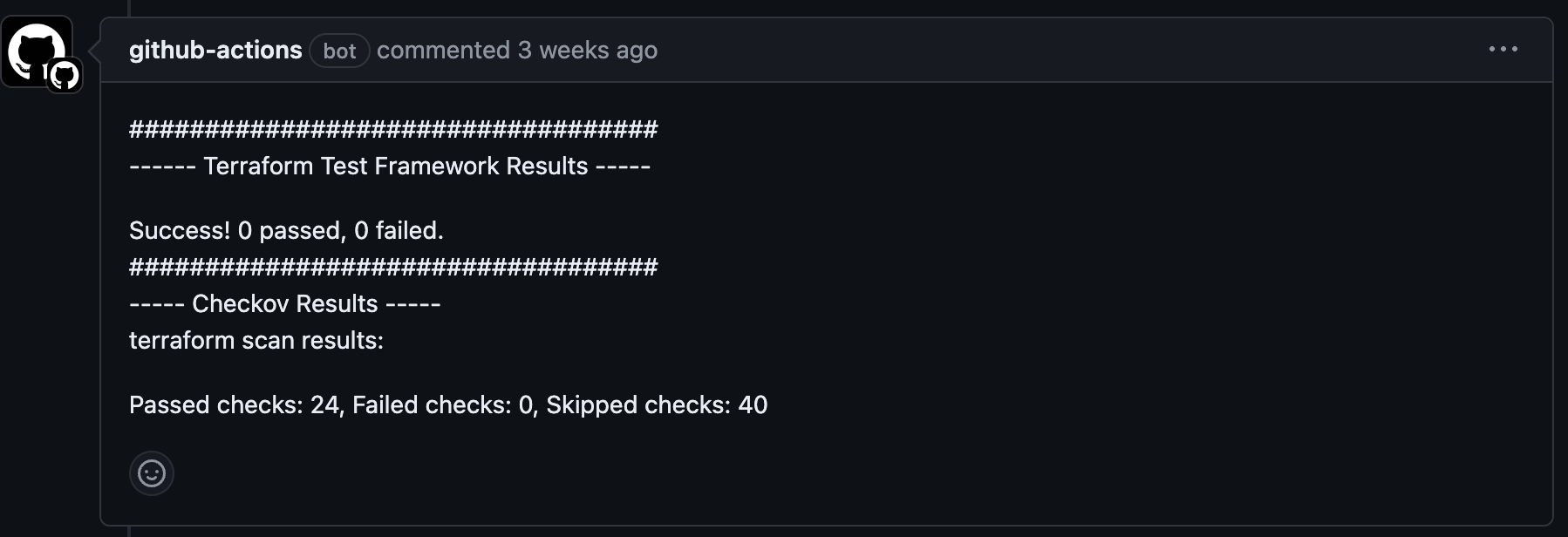

Finally, we concatenate test results into one text file that is then posted on the open PR. An example would look like this:
